Durability and high performance 15 kV, 25 kV and 35kV Cold
Shrinkable Outdoor Termination
Application: cold shrink terminations covers voltages from 12kV to
35kV with a maximum conductor size of 1000sqmm.
Which offers easy installation and reliable performance when
terminating indoor and outdoor medium voltage cables. Made from
high quality, UV resistant, silicone rubber, the Cold Shrinkable
Termination offers a combination of durability and high performance
in the field.
MV outdoor termination suited for 11kV polymeric single core cables
and will provide the necessary seal against moisture penetration
and perfect electrical field control.
10KV 1core series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
12/20KV 1core indoor/outdoor terminators (N/W) | LSN/W/J-1/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-1/2 | 95~185 | 23.7~28.4 |
| LSN/W/J-1/3 | 240~400 | 30.7~35.6 |
| LSN/W/J-1/4 | 500~800 | |
10KV 3 cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
12/20KV 3cores indoor/outdoor terminators (N/W) | LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 |
| LSN/W/J-3/4 | 500~800 | |
| 13 | 26/35KV 3 core indoor terminal kit | 50-95mm² |
| 14 | | 120-185mm² |
| 15 | | 240-400mm² |
| 16 | 26/35KV 3 core outdoor terminal kit | 50-95mm² |
| 17 | | 120-185mm² |
| 18 | | 240-400mm² |
Features:
- Good expanding strength and toughness, to ensure that the cable
installation of the tube does not appear broken phenomenon;
- Good low temperature brittleness, can be installed in the Arctic
area, no broken;
- Good high temperature resistance, can be in the hot area, product
no deformation;
- Meet ROHS 2.0 standard;
- Strict quality control, all use fresh raw materials, reliable
quality;

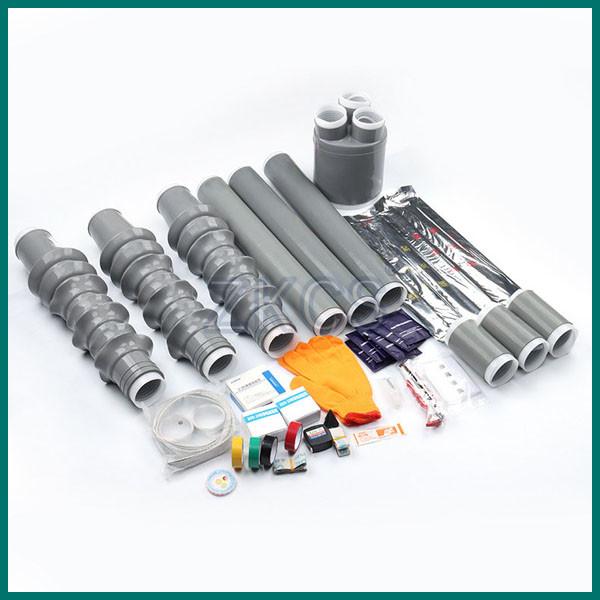

Material and Package for delivery:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been
exported to America, Australia, Egypt, Taiwan, India, Indonesia,
Egypt, Spain, Italy and Germany etc, Europe countries. Currently,
we already cooperated many famous companies in electrical and
telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
cold shrink series sealing products, including customized
processing machines and products kits, for examples: processing
winding and expanding machines, spiraling strip/tube supporting
material, EPDM cold shrink tube and silicone cable accessories kit
in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with
experienced engineer and workers, with turnkey solution for cold
shrink line to solve all your problem in this industry with
competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms
and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western
Union, Cash, Escrow;
Language:
English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
