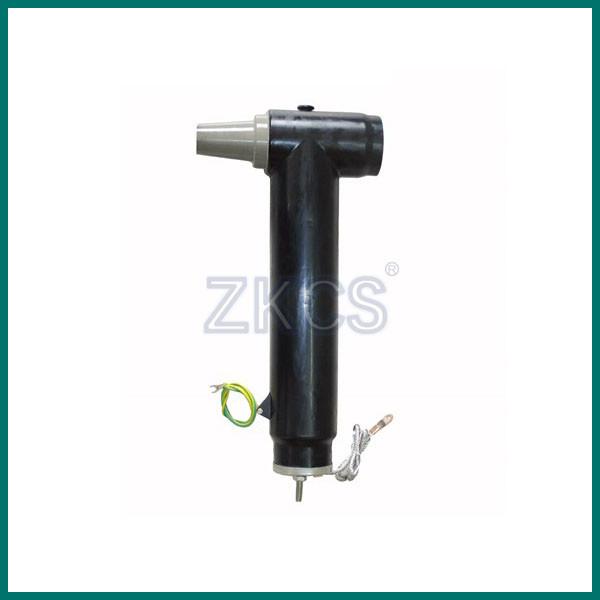

Cable Accessories Of Separator For 34kv Touchable Rear Head
Arrester
The 35kV followed by a lightning arrester provides overvoltage and
lightning protection for the 35kV power system. The application of
non-linear resistors for arrester resistors has the advantages of
low residual voltage, large current capacity, and flat steep waves.
Ensure the normal operation of the power system.
Applicable fields:
The product is small and compact. It is an ideal overvoltage
protection device in 24KV power distribution equipment, and is
suitable for supporting use in ring network cabinets and branch
boxes.
34/85 Model is suitable for 18/20kV voltage grade, 26/66 is
suitable for 12/20kV voltage rating.
Electrical Performance
| Description | 34/85 Technical Parameters | 26/66 Technical Parameters |
| Rated voltage Ur | 34kV | 26kV |
| Continuous operating voltage Uc | 27.2kV | 20.8kV |
| Nominal discharge current In | 600A | 600A |
| DC 1mA reference voltage | ≥48kV | ≥37kV |
| U1mA 75% leakage current | ≤50μA | ≤50μA |
| 2ms square wave pass flow | 150A | 150A |
| 5kA impact residual pressure (peak value) | 85kVp | 66kVp |
| Guideline :GB/T11032,12706.4；IEC60099.4 |
Product Dimensions Ref:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been
exported to America, Australia, Egypt, Taiwan, India, Indonesia,
Egypt, Spain, Italy and Germany etc, Europe countries. Currently,
we already cooperated many famous companies in electrical and
telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized
processing machines and products kits, for examples: processing
winding and expanding machines, spiraling strip/tube supporting
material, EPDM cold shrink tube and silicone cable accessories kit
in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with
experienced engineer and workers, with turnkey solution for cold
shrink line to solve all your problem in this industry with
competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms
and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western
Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German,
Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping.
