Product name

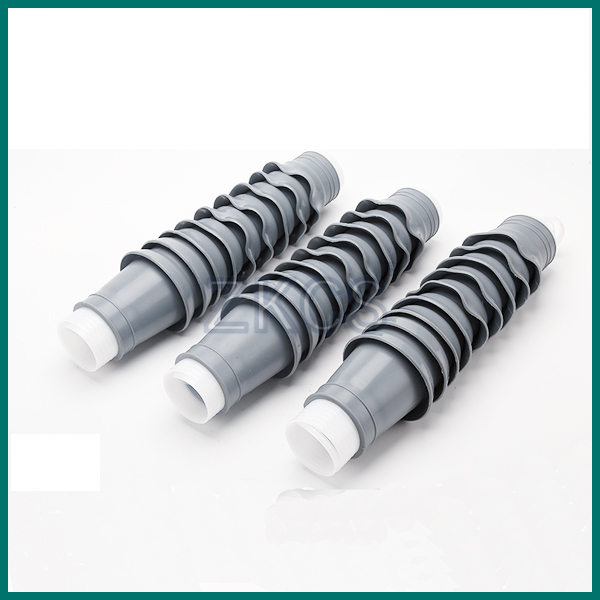

35KV Outdoor Cold Shrink Cable Terminal For Power Electrial Use
Product description
It mainly divided into the single core, two-core, three-core,
four-core, five-cove, which is widely used in the terminals
processing and middle connection of low-voltage electric cable.
Cold Shrinkable cable accessories adopt the most advanced
thchnology of cold shrinkable, dispense with using fire or others
special tools. Only need to draw out the wires, when you prepare
for installaion, and the elastomer will rapidly shrink and appress
to the installation position.
Features:
1, the use of imported liquid silicone rubber to ensure excellent
insulation and high flexibility, the installation of the cable body
has always been to maintain a constant radial pressure, local
discharge is small, with the cable body with the "breathing."
2, the terminal body with the cold shrink branch finger sets, cold
shrink insulation tube and cold shrink terminal seal tube;
intermediate connector with three waterproof sealing process to
ensure that the annex excellent sealing moisture resistance.
3, the installation is simple, the operation of the technical
dependence is low, easy to master. Cable pretreatment, the
stripping distance is short, the installation space needs small.
Grounding method using constant force spring fixed ground, no
welding or copper tied line, more efficient, safe and reliable.
4, anti-pollution, anti-aging, good hydrophobicity, with excellent
corrosion resistance, cold resistance and anti-ultraviolet, to
ensure long-term use of stable performance. Especially for high
altitude areas, cold areas, wet areas, salt fog areas and heavily
polluted areas
Applicable scope
Silicon cold shrink tube: It is widely used for waterproof seal in
coaxial cables on telecommunication base stations, N-type
connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be
used as a waterproof seal for cable television connector,
connecting wires and cables, insulation seal for other types of
connection.
Rubber Typical Properties
| Properties | Test Method | Typical Value |
| Color | / | Black |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification
purposes.
