Product name:
Silicone Cold Shrink Tubing
Application:
Widely used in waterproof sealing of coaxial cables for cables for
telecom base stations,N-type connection,1/2 jumper,Din head and 1/2
jumper connector,can be used as waterproof sealing of limited TV
connectors ,connecting wires and cables ,other types of insulation
sealing of connection.
Features:
*The expansion rate is about 2.5-4times ,strong resilence,long-term
moisture resistance ,and excellent waterproof
*Weather resistance ,ozone aging resistance,ultraviolet resistance
*Excellent tear strength
*Simple installation
| Model | Inner Diameter | After shrink length | Cable range Min.dia(mm) | Cable range Max.dia(mm) |
| CSP-15-40 | 15mm | 40mm | 4 | 9 |
| CSP-25-130 | 25mm | 130mm | 6 | 9 |
| CSP-28-125 | 28mm | 125mm | 8 | 23 |
| CSP-40-115 | 40mm | 115mm | 11.9 | 34 |
| CSP-40-130 | 40mm | 130mm | 11.9 | 34 |
| CSP-40-140 | 40mm | 140mm | 11.9 | 34 |
| CSP-45-130 | 45mm | 130mm | 13.5 | 39 |
| CSP-45-150 | 45mm | 150mm | 13.5 | 39 |
Technical data
| Properties | Test | TypicalValue |
| Color | / | Black |
| Ultimate tensile | ASTM D412-75 | 9.0MPa |
| Ultimate elongation | ASTM D412-75 | 820% |
| Tear resistance | ASTM D624C-73 | 30KN/m |
| Fungus resistance | ASTM G21 28days exposure | no growth |
| Dielectric strength | ASTM D 149-75@1.75 original 7days in water at 90℃ | |
| Volume resistance | ASTM D257 | 3.4×1015 Ohm.cn |

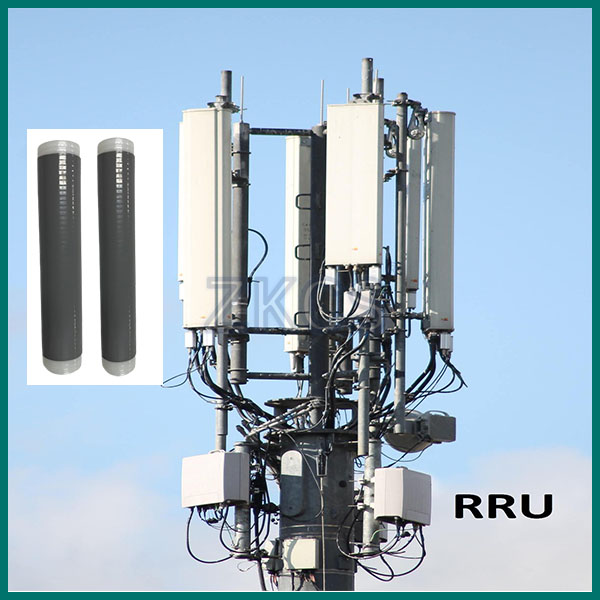

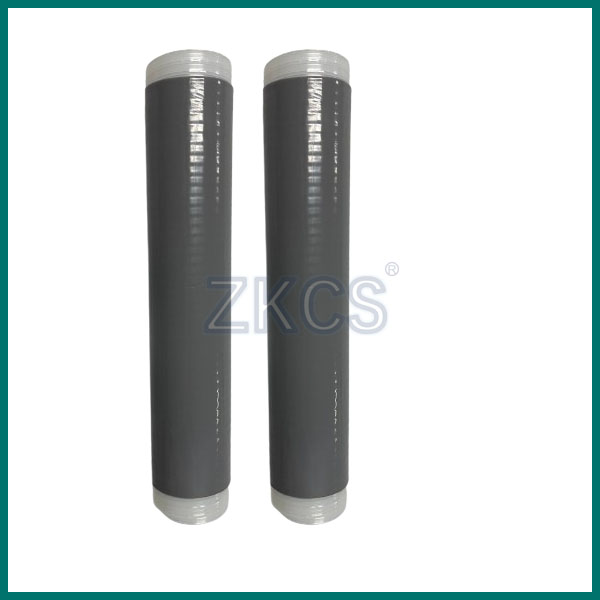

Silicone Cold Shrink Tube Reference pictures :
Silicone Cold Shrink Tubing with Mastic inside operating steps:
FAQ
1.What can you buy from us?
cold shrink series sealing products, including customized
processing machines and products kits, for examples: processing
winding and expanding machines, spiraling strip/tube supporting
material, EPDM cold shrink tube, cold shrink tubing and silicone
cable accessories kit in telecommunication and electrical power
industry.
2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with
experienced engineer and workers, with turnkey solution for cold
shrink line to solve all your problem in this industry with
competitive price.
3. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms
and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western
Union, Cash, Escrow;
Language:
English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping.
