Description:
1. Protection function: The good silicone elastomer ensures
effective protection of the palm, tiger mouth, finger joints, and
hand skin when swinging the fishing rod;
2. Alternative: Replace traditional EVA/TPU materials;
3. Installation: It is easier to install than traditional hand
glue. One set (insert the grip into the racket handle, position the
length properly), two draws (remove the inner support core rope),
and three tightens (the silicone grip is tightly attached to the
racket handle, with stronger overall adhesion);
4. Durability: Traditional hand glue uses EVA/TPU plastic with
lower density, but the disadvantage is that it is not resistant to
puncture, water washing, and sweat corrosion. However, our silicone
grip is made of high-performance food grade silicone material,
which has good puncture, water washing, and sweat corrosion
resistance, and can be used more than 10 times as many times as
EVA/TPU;
Features:
*It is more resistant to weather,ultraviolet aging,and does not
become brittle after long term use.
*Compared with silicone cold shrink tubes,it is more resistant to
punctures ,waterproof ,acid and alkali
*No gaps and tight sealing
*The sealing effect is still excellent.

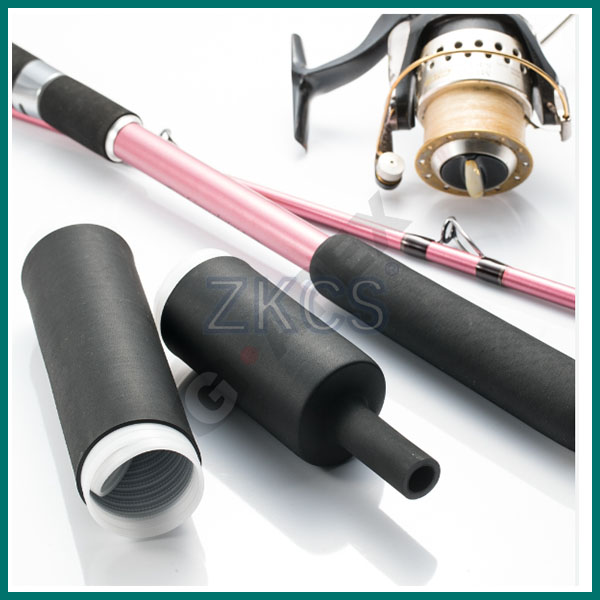

Application:Suitable for all types of fishing rod handles (bamboo, fiberglass
(fiberglass material), carbon)
| Model | Inner Diameter | After shrink length | application range Min.dia(mm) | application range Max.dia(mm) |
| EPDM-csp-25-150 | 25mm | 150mm | 10.1 | 20.9 |
| EPDM-csp-25-203 | 25mm | 203mm | 10.1 | 20.9 |
| EPDM-csp-32-279 | 32mm | 279mm | 13 | 27 |
| EPDM-csp-35-279 | 35mm | 279mm | 13.9 | 30.1 |
| EPDM-csp-40-305 | 40mm | 305mm | 17.5 | 33 |
| EPDM-csp-53-152 | 53mm | 152mm | 20 | 46 |
| EPDM-csp-53-305 | 53mm | 305mm | 20 | 46 |
| EPDM-csp-58-250 | 58mm | 250mm | 24 | 49.3 |
| EPDM-csp-58-305 | 58mm | 305mm | 24 | 49.3 |
| EPDM-csp-77-305 | 77mm | 305mm | 32.2 | 67.8 |
| EPDM-csp-77-457 | 77mm | 457mm | 32.2 | 67.8 |
| EPDM-csp-105-229 | 105mm | 229mm | 42.6 | 93.7 |
| EPDM-csp-105-457 | 105mm | 457mm | 42.6 | 93.7 |
Technical data
| No. | Item | Test Method | Test standard | Remarks |
| 1 | Color | | | Black |
| 2 | Hardness(Shore A) | ISO 7619-1:2010 | 43±5Shore A | |
| 3 | Tensile strength | GB/T528-2009 | >8Mpa | |
| 4 | Break elongation | GB/T528-2009 | 800±150% | |
| 5 | Tear strength | GB/T528-2009 | 38±5 KN/mm | |
| 6 | Volume resistivity | / | / | >1*1012ohm-cm |
| 7 | Dieletric constant | / | / | <5.0 |
Black 1kv Low Voltage EPDM Cold Shrink Sleeve for cable sealing in
power industy
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been
exported to America, Australia, Egypt, Taiwan, India, Indonesia,
Egypt, Spain, Italy and Germany etc, Europe countries. Currently,
we already cooperated many famous companies in electrical and
telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized
processing machines and products kits, for examples: processing
winding and expanding machines, spiraling strip/tube supporting
material, EPDM cold shrink tube and silicone cable accessories kit
in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with
experienced engineer and workers, with turnkey solution for cold
shrink line to solve all your problem in this industry with
competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms
and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western
Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German,
Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping
