Waterproof Insulation Mastic Tape, strong adhesion to copper,
aluminum, and cable jackets
| Product | Model No. | Normal Specification |
| ZK 2028 Waterproof Insulation Tape | 1 | 51mm*1.65mm*3m |
| 2 | 51mm*1.65mm*1m |
Waterproof Insulation Tape Brief introduction:
waterseal mastic tape is a conformable self-fusing rubber
electrical insulating and sealing tape. KC80 consists of ethylene
propylene rubber (EPR) and butyl mastic adhesive. It has strong
adhesion to copper, aluminum, and cable jackets. It provides
excellent waterproofing performance and temperature stability at
90℃,and withstanding of overload temperature up to 130℃.
Designed for electrical insulating and moisture sealing, intended
for both indoor and weather exposed outdoor applications including
resistance to UV exposure.
Waterproof Insulation Tape Product Features:
◆ Continuous waterproofing.
◆ Highly self-fusing tape.
◆ Suitable for irregular shapes cable.
◆ Resistance to high/low temperature.
◆ Resistance to corrosion.
◆ Resistance to ozone, UV, xenon exposure.
◆ New formulation for insulation.
◆ Operation and installation easily.
◆ Thick construction allows quick application build–up and padding
over irregular connections
Waterproof Insulation Tape Product Application:
For For telecommunication,electrical industry.
Waterproof Insulation Tape Technical parameters:
| Technical parameters | | Performance | Typical data | Test method | | Tensile strength | 1.29MPa | ASTM D 4325 | | Elongation at break | 970% | ASTM D 4325 | | dielectric strength | 26.5KV/mm | ASTM D 4325 | | Adhesion(180°,steel plate) | 78.4N/10mm | ASTM D 1000 | | Heat aging | Pass | ASTM D 4388 | | Ozone aging | Pass | ASTM D 4388 | | UV aging | Pass | ASTM D 4388 | | Xenon lamp | Pass | ASTM D 4388 |
|

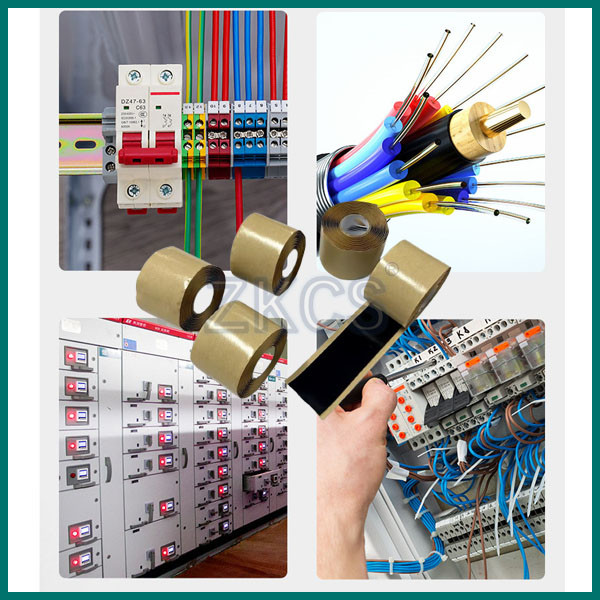

Product pictures for reference.
For your information:
Trade terms | FOB, EXW, CIF, |
Payment terms | T/T, L/C, Negotiable |
MOQ | 500 |
Supply capability | 300000 pieces per month |
Lead time | usually 10 working days |
Shipment | Express, air, sea |
Port | Shenzhen |
Sample availability | Yes |
Sample time | usually 3-5 days |
Packaging | Normal: Plastic bag & Carton & Pallet
Special: Customized packing |
